BMW DME - ECU Cloning Service - All BMW Models - Plug and Play
This cloning service will read the original all of the original DME data and transfer VIN, immobilizer ISN, software, and coding (including injector coding if applicable) to the replacement DME/ECU.
The replacement DME will be identical to the original after the end of the DME cloning procedure. We do not use soldering or removal of EPROM chips off the board during the cloning procedure. So you can be assured that the replacement DME will not be damaged physically during programming. After receiving the DME back, it should plug into the car and start right up as if it were original with original keys.

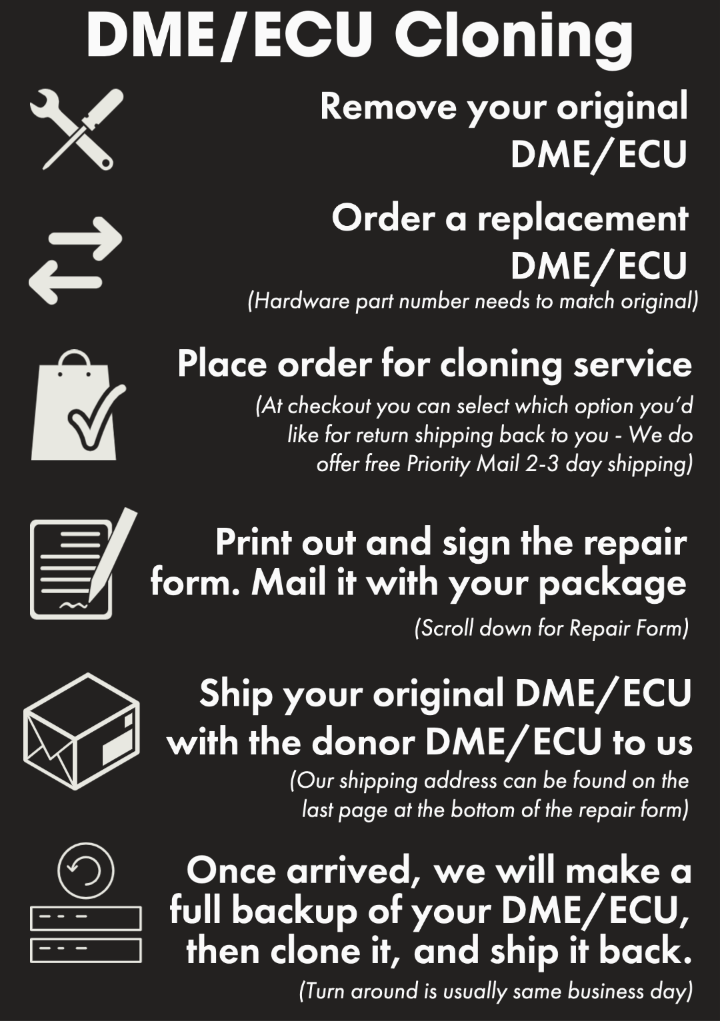

For this cloning service, you will have to send in the original and replacement DME (make sure part numbers match or are compatible). Replacement DME/ECU can be sourced for fairly cheap usually on eBay or car-part.com.
If the original DME is damaged beyond being able to read out data, we will ship back both units and provide a refund for your order, minus shipping cost.
If you have any questions or concerns or want to confirm that we can clone your certain DME, please email us a picture of the ECU stickers.
ME5.2.1 - BMW M62 Engine - 1998 E39 540i / E38 740i / E38 740i / 1998-2001 750i 750iL V12 M73
ME7.2 - BMW M62TU Engine - 1999 - 2003 E39 540i / E38 740i / E38 740iL / E53 X5 4.4
ME9.2 - BMW N62 Engine - E70/E60/E65 545I/550I/X5 4.4/4.8/ X6 4.4/4.8 / 745I/750I
MS42 - BMW M52TU Engine - E46 E39 328i 528i
MS43 - BMW M54 Engine - E46 X5 E39 2.5i 3.0i 325i 325xi 330i 330xi 525i 530i X5
MS45 - BMW M54 Engine - E46 X5 E60 E61 325 330i 525i 530i
MS45 - BMW M56 Engine - E46 X5 E60 E61 325 330i 525i 530i
MSD80 - BMW N54 Engine (BMW 135i/335i/335xi/535i/535xi/x5 35i/x6 35i/etc)
MSD81 - BMW N54 Engine (BMW 135i/335i/335xi/535i/535xi/x5 35i/x6 35i/etc)
MSD85 - BMW N63 Engine - 4.4L V8 - BMW E70 X5 50i - E71 X6 50i - F07 F10 550I F12 F13 650I F01 F02 750I
MSD85 - BMW S63 Engine - 4.4L V8 - BMW E70 X5M - BMW E71 X6M
MSS70 - BMW S54 Engine - 3.2L I6 - E85 Z4M / E86 Z4M-Coupe
MSS60 - BMW S65 Engine - 4.0L V8 - E90 M3 / E92 M3
MSS65 - BMW S85 Engine - 5.0L V10 - E60 M5 / E63 M6 / E64 M6
MSV70 - BMW N51 Engine - 2.5L 3.0L - 525i 530i 325i 330i Z4
MSV70 - BMW N52 Engine - 2.5L 3.0L - 525i 530i 325i 330i Z4
MSV80 - BMW N52N Engine - 2.5L 3.0L E60 E70 E83 E82 E88 E89 E90 E91 E92 E93
MSV90 - BMW N52T Engine - X3 28i - F10 528I
MEVD17.2 – BMW N55 Engine - E70 35i E71 35i E90 E91 E92 E93 335i 335xi E82 E88 135i
MEVD17.2.6 – BMW N55 Engine – F30 F31 F32 F33 335i 335xi 435i 435xi
MEVD17.2.8 – BMW N63TU Engine – F07 F10 550i 550xi F06 F12 / F13 650i 650xi -Alpina
MEVD17.2.8 – BMW S63TU Engine – F10 M5 - F12 M6 - F13 M6
MEVD17.2.9 – BMW N20 – N26 Engine – 328i 528i 328xi 528xi X3 28i 428i 428ix
MEVD17.2.G – BMW N55 Engine – F30 335i 335xi F32 435i 435xi F15 35i F16 35i F25 35i F02 740i
MEVD17.2.G – BMW S55 Engine – F80 M3 F82 M4 F83 M4
MEVD17.2.H – BMW N63TU Engine – F10 550i 550xi F12 / F13 650i 650xi - Alpina
MEVD17.2.H – BMW S63TU Engine – F10 M5 - F12 M6 F13 M6 – F85 X5M – F86 X6M
MEVD17.2.P - BMW N20 – N26 Engine – 328i 528i 328xi 528xi X3 28i 428i 428ix
MG1CS003 - B58 Engine - x3 40i – x4 40i – m340i - 340i - 440i - 540i -740i - 840i - X5 40i - X6 40i - X7 40i
MG1CS003 - N63 Engine - G30 M550i - G15 850i - G16 850i - G07 X7 50i - G11 G12 750i G05 X5 50i
MG1CS003 -S63 Engine - F90 M5 – F91 M8 - F92 M8 - F93 M8 - F94 M8 - X5M X6M
Please print out the form below and mail it in with your DME. DME will NOT be flashed until the form is filled out and sent to us. Thank you.
Tax excluded. Shipping calculated at checkout
BMW DME - ECU Cloning FAQs
What is BMW DME?
The BMW DME (Digital Motor Electronics) is the brand's term for the engine control unit (ECU) used in their vehicles. The DME is responsible for controlling various aspects of the engine's operation, including fuel injection, ignition timing, and idle speed. It plays a crucial role in ensuring optimal engine performance, fuel efficiency, and emissions control.
The DME continuously collects data from various sensors within the engine and vehicle, such as the air intake temperature, engine coolant temperature, throttle position, and oxygen levels in the exhaust gases. Using this information, it adjusts the engine's operations in real-time to maintain performance and efficiency under a wide range of conditions.
In addition to controlling the engine, the DME may also communicate with other vehicle systems, such as the transmission control unit (TCU) and the electronic stability program (ESP), to ensure overall vehicle performance and safety.
The technology and capabilities of the DME have evolved significantly over the years, incorporating more advanced algorithms and control strategies to meet stricter emissions regulations, improve fuel economy, and enhance the driving experience.
Can an DME Cloning be done on any BMW model?
DME cloning is a process where the complete data set from one Digital Motor Electronics (DME) unit is copied to another DME unit. This includes not just the software or firmware, but also the vehicle-specific data and configurations, such as the immobilizer data, VIN (Vehicle Identification Number), and any calibration or adaptation values. This process is often used for repairing or replacing a faulty DME without the need to reprogram the new unit from scratch, which can be time-consuming and requires specialized equipment and access to BMW's proprietary software.
Whether DME cloning can be done on any BMW model depends on several factors, including the specific model of BMW, the year of manufacture, and the type of DME unit installed in the vehicle. Older BMW models with simpler electronic systems and less sophisticated anti-theft measures are generally more straightforward to clone. However, newer models, especially those from the last decade, often have more advanced security features that can make cloning more challenging or even impossible without the proper tools and expertise.
Moreover, the ability to clone a DME successfully also depends on the availability of compatible hardware and software tools that can read from and write to the DME's memory. Some aftermarket tools and software are designed specifically for this purpose, but their effectiveness and compatibility may vary by BMW model and DME version.
It's important to note that while DME cloning can be a practical solution for vehicle repair and maintenance, it should be done by professionals with the proper knowledge and tools. Improper cloning procedures can lead to vehicle malfunctions, security issues, or even permanent damage to the electronic systems. Additionally, there are legal and ethical considerations regarding the manipulation of vehicle control units, so it's crucial to ensure that any such activity is done in compliance with local laws and regulations.
Can you clone a damaged DME - ECU?
Cloning a damaged BMW DME (Digital Motor Electronics) or ECU (Engine Control Unit) is possible, but the success largely depends on the extent and nature of the damage. Here are the key considerations for determining if a damaged BMW DME/ECU can be cloned:
- Type of Damage: The feasibility of cloning depends on how the DME/ECU was damaged. Physical damage that doesn't affect the internal memory chips or crucial circuits may still allow for successful data extraction. However, severe physical damage or issues affecting the memory or processing components can make data recovery challenging.
- Data Accessibility: The core requirement for cloning is accessing the stored data, including the vehicle's immobilizer data, VIN, and calibration settings. If this data is intact and can be read from the damaged unit, cloning is often feasible.
- Specialized Tools and Expertise: The process requires specialized equipment and expertise. DUDMD Tuning Professionals use tools designed for automotive diagnostics and ECU programming to extract data from the damaged DME/ECU and transfer it to a donor unit.
While cloning a damaged BMW DME/ECU can be a solution for replacing a faulty unit without the need for extensive reprogramming, it's not always guaranteed. The success of the cloning process depends on the damage's nature, the ability to recover essential data, and the technical capabilities of the professionals involved.
Can you clone a damaged DME - ECU that has water damage?
Cloning a DME (Digital Motor Electronics) or ECU (Engine Control Unit) that has suffered water damage is challenging, but it might be possible depending on several factors. Water damage can cause a range of issues, from corrosion of components and circuitry to short circuits and failure of electronic parts. The feasibility of cloning a water-damaged DME/ECU depends on the extent of the damage, the specific components affected, and whether the data within the unit's memory can be successfully retrieved. Here are some considerations:
- Assessment of Damage: The first step is a thorough cleaning and drying of the unit to prevent further corrosion. Then, a detailed inspection is necessary to assess the extent of the damage. This involves checking for corrosion on the circuit board, damaged components, and any signs of short-circuiting.
- Data Accessibility: The critical factor for cloning is whether the memory chips that store the vehicle’s configuration data, including the immobilizer information, VIN, and calibration settings, are intact and accessible. If these chips are not damaged and can be read, cloning may be feasible.
- Specialized Recovery Techniques: In cases where the standard interfaces for communicating with the DME/ECU are damaged, specialized techniques such as direct chip reading might be employed. This process can involve desoldering the memory chip from the damaged board and using specialized equipment to read its contents directly.
- Expertise and Equipment: Successful cloning of a water-damaged unit requires expertise in automotive electronics and access to specialized tools. Professionals who specialize in ECU repair and cloning will have the necessary skills and equipment to attempt data recovery from water-damaged units.
- Considerations and Risks: Attempting to recover and clone data from a water-damaged DME/ECU comes with risks. There's a possibility that not all data can be recovered intact, and there's also a risk of introducing issues to a new or donor ECU during the cloning process. Furthermore, if the original unit's damage is extensive, there may be undetectable corruption of data, which could lead to issues when transferred to another unit.
How to Confirm Compatibility Between My Original ECU and a Donor Unit?
To determine if a donor Engine Control Unit (ECU) is compatible with your original ECU, consider the following steps:
- Check the Part Numbers: The most straightforward way to assess compatibility is by comparing the part numbers of both ECUs. Manufacturers assign specific part numbers to ECUs that correspond to their programming, hardware specifications, and vehicle compatibility. If the part numbers match, it's a strong indication that the donor ECU can serve as a suitable replacement.
- Seek Professional Advice: Due to the complexity and specificity of ECU programming and vehicle electronics, consulting with a professional mechanic or automotive electronics specialist is highly recommended. They can offer expert guidance based on your vehicle's specific requirements and the donor ECU's characteristics.
- Consider the Need for ECU Reprogramming and ECU Cloning: Even if a donor ECU is a match in terms of hardware, it may require reprogramming to align with your vehicle's immobilizer system, keys, and other personalized settings. Be prepared to have the ECU programmed by DUDMD Tuning to ensure full functionality.
By following these guidelines, you can significantly increase the likelihood of selecting a donor ECU that is compatible with your original unit, ensuring a smooth transition and optimal vehicle performance.
Does DUDMD Tuning provide replacement DME - ECU unit?
We don't keep or sell many ECU – DME donor units due to their numerous variations.
It's recommended to buy a replacement unit that exactly matches your original
one. Once you've acquired the matching DME module, you can send us the
replacement ECU-DME module and the original ECU-DME module for cloning process.
What DME Models are supported for BMW DME - ECU Cloning?
We have a wide coverage and extensive list of DMEs that are supported for BMW ECU Cloning:
If your DME (Digital Motor Electronics) type is not listed, or if you're uncertain about the specific type you have, we encourage you to reach out to us via email. Please include photographs of the stickers on your DME for identification, along with the year and model of your BMW. Providing your full Vehicle Identification Number (VIN) can also significantly assist us in accurately determining the correct DME type for your vehicle. This information will enable us to offer you the most accurate assistance and ensure that we can support your needs effectively.
- ME5.2.1 - BMW M62 Engine - E39 540i / E38 740i/740iL Year , and 1998-2001 750i V12 M73
- ME7.2 - BMW M62TU Engine - E39 540i / E38 740i/740iL / E53 X5 4.4
- ME9.2 - BMW N62 Engine - E70/E60/E65 545I/550I/X5 4.4/4.8/ X6 4.4/4.8 / 745I/750I
- MS42 - BMW M52TU Engine - E46 E39
- MS43 - BMW M54 Engine - E46 X5 E39
- MS45 - BMW M54/M56 Engine - E46 X5 E60 E61
- MSD80 - BMW N54 Engine (BMW 135i/335i/335xi/535i/535xi/x5 35i/x6 35i/etc)
- MSD81 - BMW N54 Engine (BMW 135i/335i/335xi/535i/535xi/x5 35i/x6 35i/etc)
- MSD85 - BMW N63 - BMW S63 Engine - (BMW X5 50i/X6 50i/X5M/X6M - 550I 650I 750I)
- MSS70 - BMW Z4M S54 Engine
- MSS60 - BMW S65 4.0L V8 Engine
- MSS65 - BMW S85 5.0L V10 Engine
- MSV70 - BMW N51 - N52 Engine I6 - 2.5L 3.0L (2006-2007 525i 530i 325i 330i Z4)
- MSV80 - BMW N52N Engine I6 - 2.5L 3.0L (2007-2013 BMW models - E60 E70 E83 E82 E88 E89 E90 E91 E92 E93)
- MSV90 - N52 Engine BMW X3 and F10 528I
- MEVD17.2 – BMW N55 Engine - E70 35i E71 35i E90 E91 E92 E93 335i 335xi E82 E88 135i
- MEVD17.2.6 – BMW N55 Engine – F30 F31 F32 F33 335i 335xi 435i 435xi
- MEVD17.2.8 – BMW N63TU – S63TU Engine – F10 550i 550xi F12 / F35 650i 650xi -Alpina – F10 M5 -F12 M6 F13 M6
- MEVD17.2.9 – BMW N20 – N26 Engine – 328i 528i 328xi 528xi X3 28i 428i 428ix
- MEVD17.2.G – BMW N55 – S55 Engine – F80 M3 F82 M4 – F30 335i 335xi F32 435i 435xi F15 35i F16 35i F25 35i F02 740i
- MEVD17.2.H – BMW N63TU – S63TU Engine – F10 550i 550xi F12 / F13 650i 650xi - Alpina – F10 M5 - F12 M6 F13 M6 – F85 X5M – F86 X6M
- MEVD17.2.P - BMW N20 – N26 Engine – 328i 528i 328xi 528xi X3 28i 428i 428ix
- MG1CS003 - B58 S63 N63 - x3 40i – x4 40i – m340i - 340i - 440i - 540i -740i - 840i - X5 40i - X6 40i - F90 M5 – M550i 850i X7 40i X7 50i 750i 850i
- -Please Note-Models after June 2020 are not supported as no tool can yet read/write them.
